NREL Supercomputing Model Provides Insights from Higher Wind and Solar Generation in the Eastern Power Grid

NREL opens data to help planners and regulators understand implications of higher wind and solar generation

WASHINGTON, D.C. — (RealEstateRama) — A new study from the United States Department of Energy’s (DOE) National Renewable Energy Laboratory (NREL) used high-performance computing capabilities and innovative visualization tools to model, in unprecedented detail, how the power grid of the eastern United States could operationally accommodate higher levels of wind and solar photovoltaic generation. The analysis considered scenarios of up to 30 percent annual penetration of wind and solar.

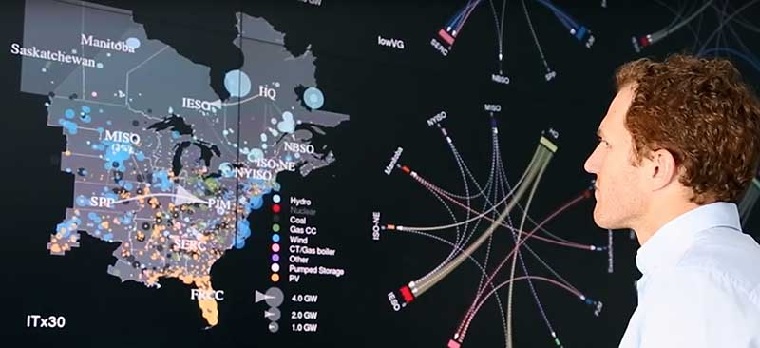

NREL’s David Palchak, co-author of the Eastern Renewable Generation Integration Study, examines data visualizations developed with computing resources in NREL’s Energy Systems Integration Facility.

Whereas previous studies have investigated operations in one-hour intervals, NREL’s Eastern Renewable Generation Integration Study (ERGIS) analyzed a year of operations at 5-minute intervals, the same real-time interval used by grid operators for scheduling resources.

“By modeling the power system in depth and detail, NREL has helped reset the conversation about how far we can go operationally with wind and solar in one of the largest power systems in the world,” said the Energy Department’s Charlton Clark, a DOE program manager for the study. “Releasing the production cost model, underlying data, and visualization tools alongside the final report reflects our commitment to giving power system planners, operators, regulators, and others the tools to anticipate and plan for operational and other important changes that may be needed in some cleaner energy futures.”

For the study, NREL produced a high-resolution model of the entire Eastern Interconnection, including Canada, an important power trading partner with the United States. NREL modeled more than 5,600 electricity generators and more than 60,000 transmission lines in a power system that spans from Florida to Maine and portions of Canada and as far west as New Mexico.

ERGIS considered four hypothetical scenarios to analyze how the Eastern Interconnection might function in 2026, when the power system could have significantly less power generation from fossil fuels. The scenarios vary according to how wind, solar, and natural gas are used to replace the fossil fuel generators. The scenarios also differ according to the amount of new transmission lines that are assumed. Simulations occur in a modeling framework that mirrors the security constrained unit commitment (SCUC) and economic dispatch (SCED) process used by system operators. The SCUC and SCED determine the operation of the power system according to a variety of constraints, including marginal costs and defined operating reserve requirements. The capital costs, land use and siting, market design, gas pipeline, and other factors that would need to be addressed under the scenarios were not considered. This study also did not look at all aspects of reliability considered by system planners and operators, including system dynamics and AC power flow.

“Our work provides power system operators and regulators insights into how the Eastern Interconnection might operate in future scenarios with more wind and solar energy,” said Aaron Bloom, NREL project leader for the ERGIS study. “More importantly, we are sharing our data and tools so that others can conduct their own analysis.”

Among other findings, ERGIS shows that as wind and solar power generation increase:

• The operation of traditional power sources (such as coal, natural gas, and hydropower) changes -Turning up or down more quickly to accommodate seasonal and daily variations of wind and solar in order to maintain the balance between demand and supply. In addition, traditional generators would likely operate for shorter periods of time as wind and solar resources meet more of the demand for electricity.
• Flows of power across the Eastern Interconnection change more rapidly and more frequently. During periods of very high wind and solar generation (e.g., 40 percent or more of daily load), model regions trade frequently and in large volumes according to new net load patterns.
• Regulatory changes, market design innovation, and flexible operating procedures are important to achieving higher levels of wind and solar. Looking at a year of operations at a 5-minute level, ERGIS shows that the power system can meet loads with variable resources-like wind and solar-in a variety of extreme conditions. However, technical feasibility depends on other transmission and generation operators providing the necessary ramping, energy, and capacity services; wholesale market design changes; and various capital expenditures, all of which will have financial and other implications that may need to be addressed and were outside of this study.

Fast Facts from the Analysis

• The maximum penetration of wind and solar was 60 percent over a five-minute interval.
• The maximum annual curtailment of wind and solar was 6.2 percent.
• Wind and solar generation result in a 30 percent reduction in generation and commitment from coal and natural gas plants in the high wind and solar scenarios.
• Over the baseline scenario, CO₂ emissions were reduced by up to 33 percent annually in our high wind and solar scenarios.

Peregrine Supercomputer: Power for an Efficient, Integrated Energy Future

NREL developed new modeling and analytical approaches that were executed using Peregrine, the lab’s ultra-efficient supercomputer. Peregrine has a peak performance of 2.25 petaflops (2.25 million billion calculations per second). That combination of computing power and innovative modeling techniques enabled NREL to remove simplifying assumptions included in other power systems models, increase fidelity of the modeled results, and reduce the processing time for ERGIS calculations from 19 months on a desktop computer to 19 days. The ERGIS team also took advantage of additional resources in NREL’s Energy Systems Integration Facility.

“We developed visualization tools that allow us to see how energy moves through the grid in space and time, and through those tools we could see patterns and events that weren’t visible in the static data points and plots,” said Bloom.

The full ERGIS report and accompanying tools are available at NREL.gov/ERGIS.

This study was funded by the Energy Department’s Office of Energy Efficiency and Renewable (EERE) and theOffice of Electricity Delivery and Reliability (OE).

EERE and OE also work together as part of the Department’s Grid Modernization Initiative (GMI), a comprehensive effort to help shape the future of our nation’s grid and solve the challenges of integrating conventional and renewable sources with energy storage and smart buildings, while ensuring that the grid is resilient and secure to withstand growing cybersecurity and climate challenges. Through the GMI and its Multi-Year Program Plan (MYPP) the Department will help frame new grid architecture design elements, develop new planning and real-time operations platforms, provide metrics and analytics to improve grid performance, and enhance government and industry capabilities for designing the infrastructure and regulatory models needed for successful grid modernization. The MYPP also builds on concepts and recommendations from DOE’s recently released Quadrennial Energy Review and Quadrennial Technology Review.

NREL is the U.S. Department of Energy’s primary national laboratory for renewable energy and energy efficiency research and development. NREL is operated for the Energy Department by The Alliance for Sustainable Energy, LLC.
